IIoT Devices as Simple as 1-2-3​

TrakSYS enabled Data Collectors. Operations management miniaturized.

Introducing the TrakSYS IIoT Smart Data Collection System

Looking for a way to get started with smart manufacturing but don’t have the infrastructure? Now you can get started without the need for a major IT project or large capital expenditure. Introducing the TrakSYS Smart Data Collection System, specially designed Industrial IoT data collection devices and auto-configuration software that make connecting TrakSYS to your factory equipment as simple as 1-2-3.

Infrastructure-Friendly

No drivers or OPC. No firewall issues (port 80 out).

Cost-Effective

High engineering efficiency. Low cost of ownership.

optimized
Optimized for TrakSYS

Direct TrakSYS connection. Fast and light.

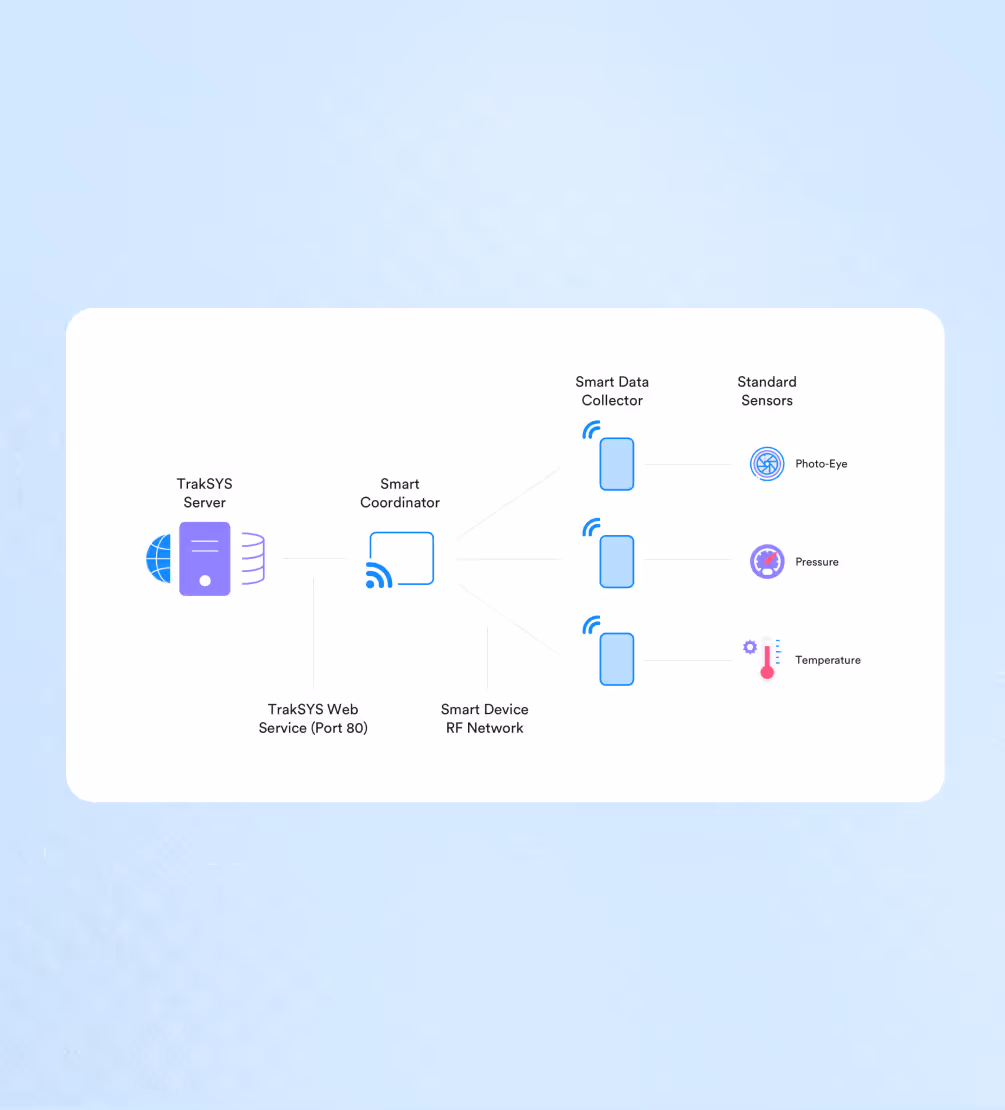

Smart IIoT Architecture

The system includes IIoT data collectors and a coordinator, and auto-configuration software, to make it as easy as possible to set up and manage the TrakSYS Manufacturing Operations Management system in virtually any environment, regardless of existing infrastructure.

IIoT TrakSYS Data Collector

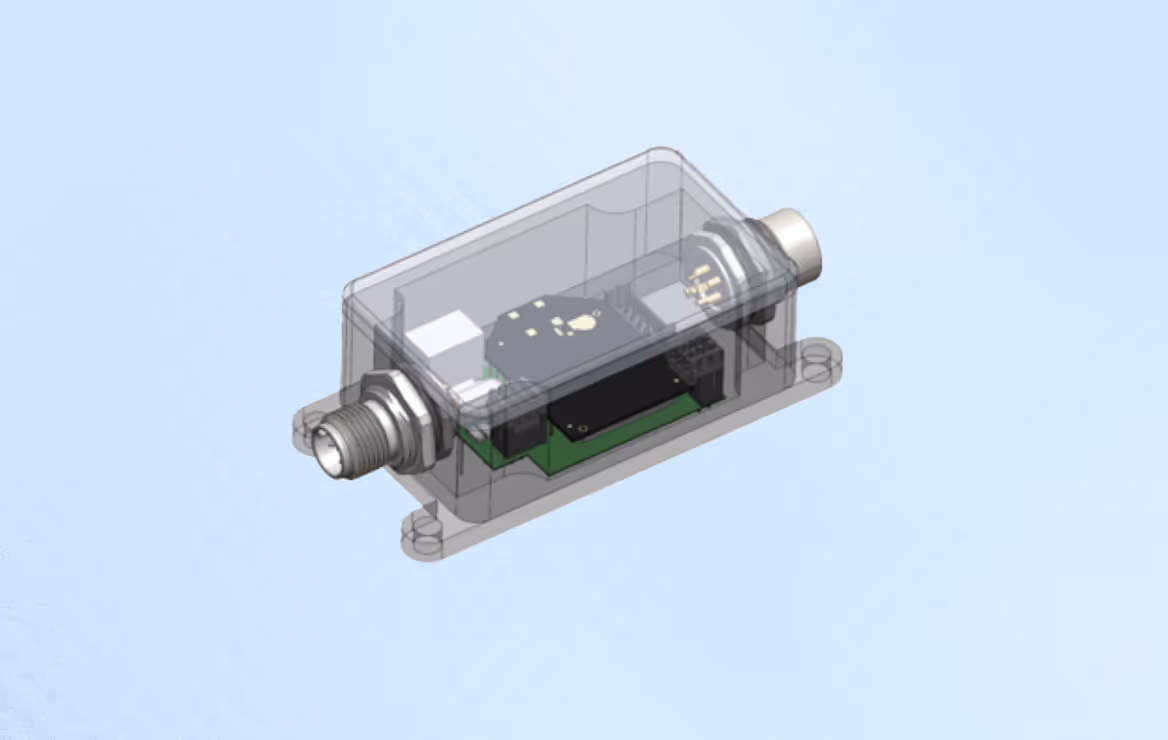

Smart Data Collector

Housed in an IP65-rated enclosure, the Smart Data Collector connects to standard third-party sensors to gather production data via a lightweight RF mesh network.

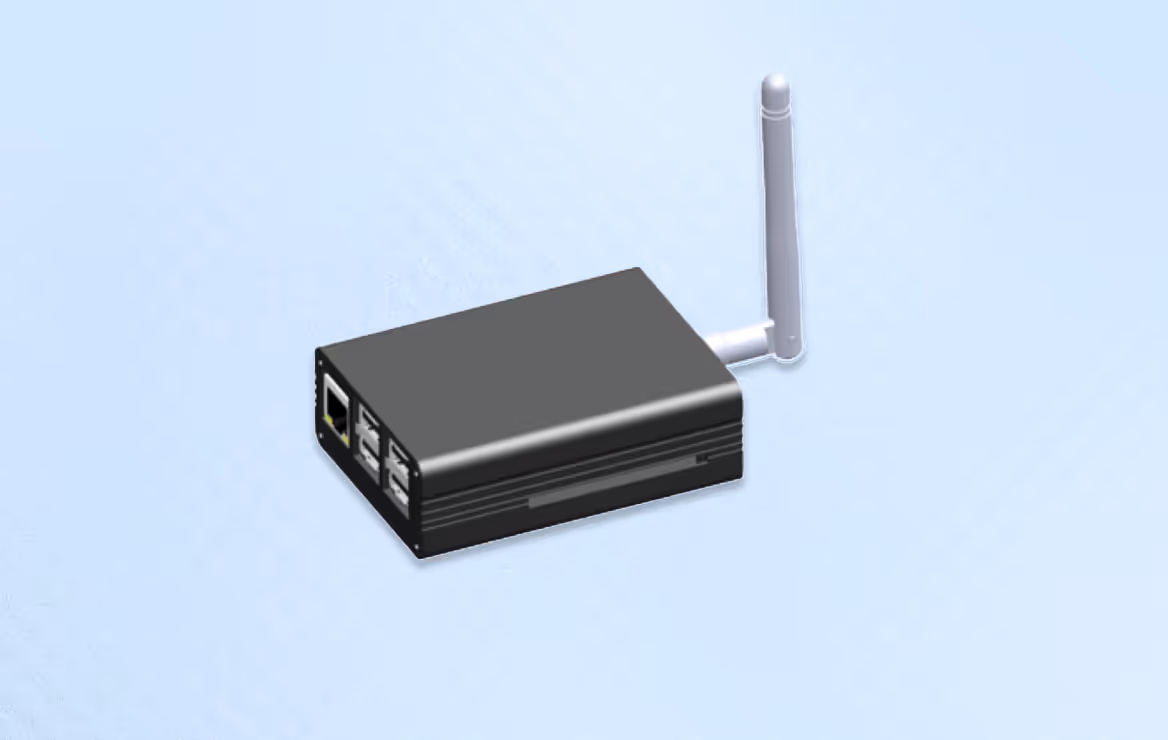

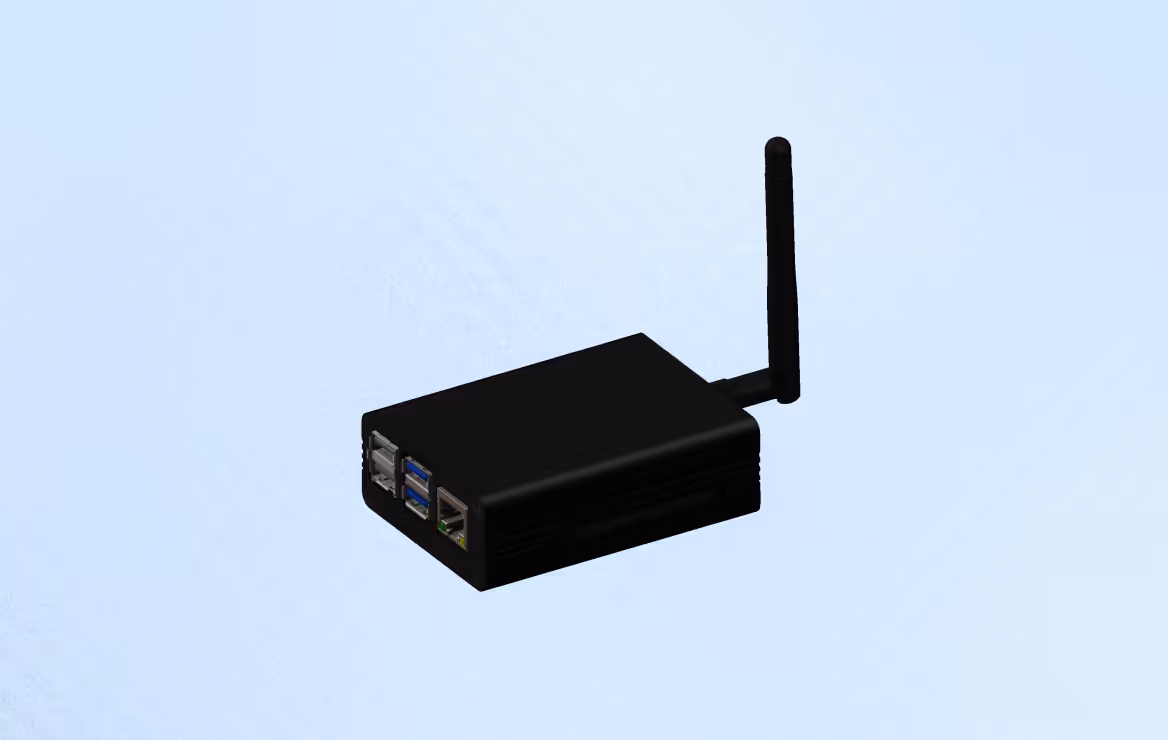

Smart Coordinator

The TrakSYS Smart Coordinator is an edge device that aggregates data from Smart Data Collectors and shares that input with a TrakSYS server — on-premises or in the cloud.

IIoT TrakSYS Coordinator
IIoT Configuration Software Callout

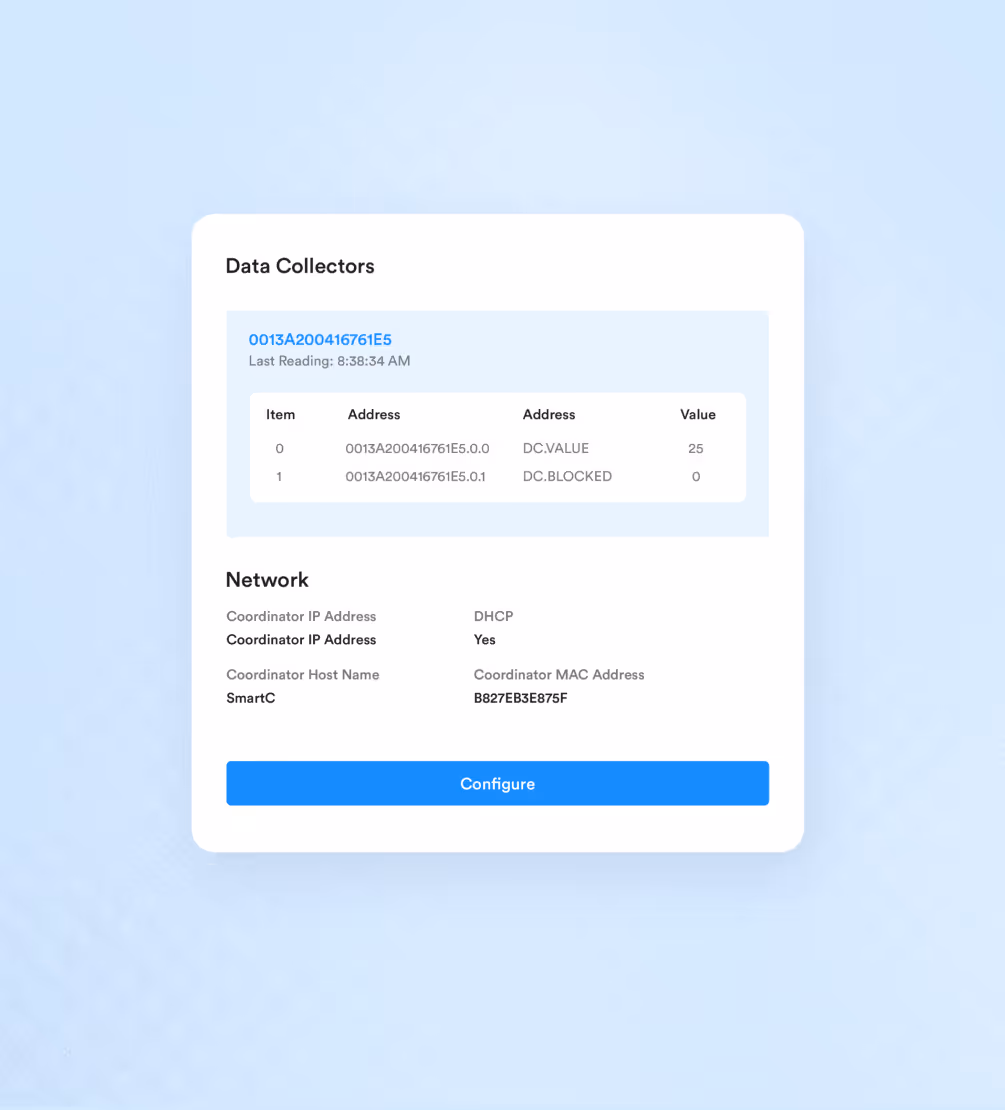

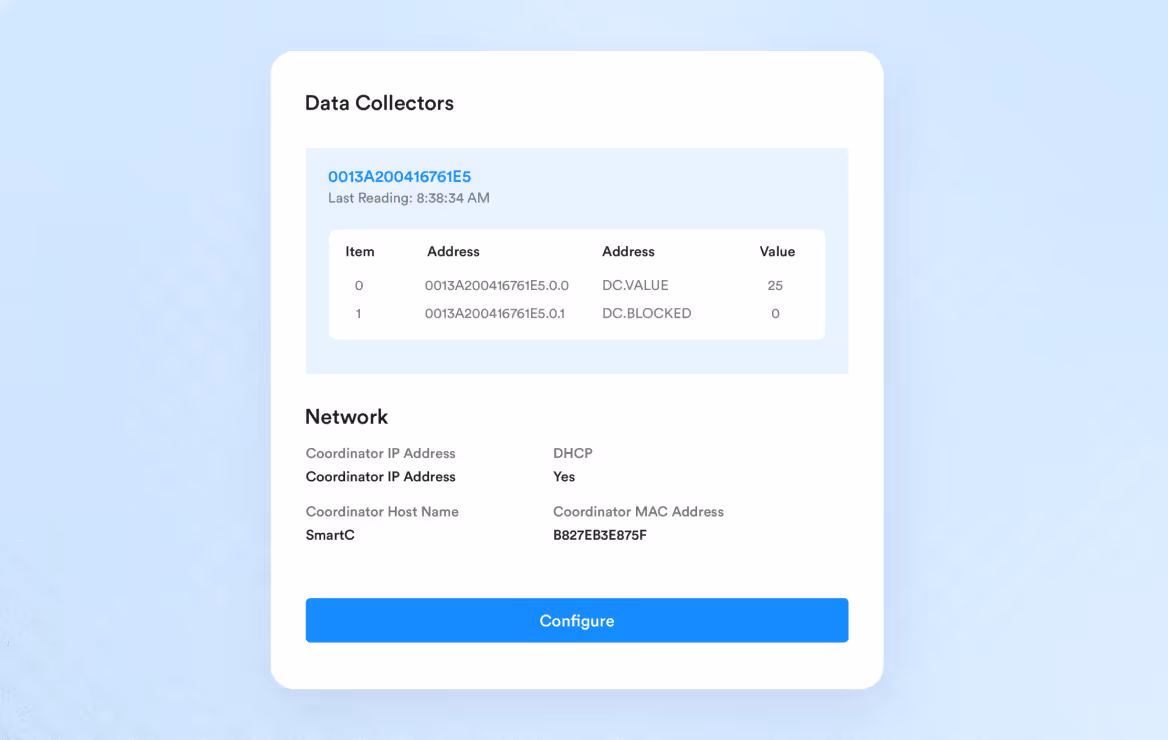

Configuration Software

Configuration is done through a web-based interface that allows you to set up and monitor the coordinator, individual data collectors, and the system’s connection to TrakSYS.

Wireless Network

Data Collectors are designed to work with one another, all sending data to a Coordinator. The Coordinator acts as an intermediary between the Data Collectors and the TrakSYS server.

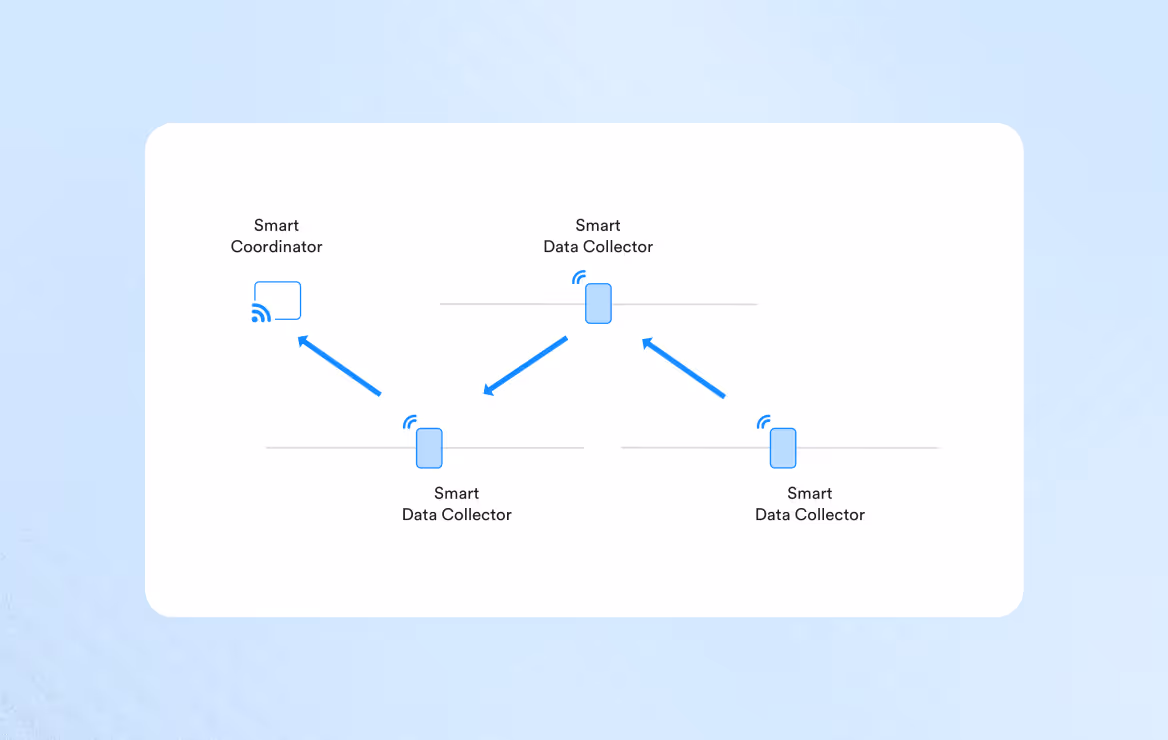

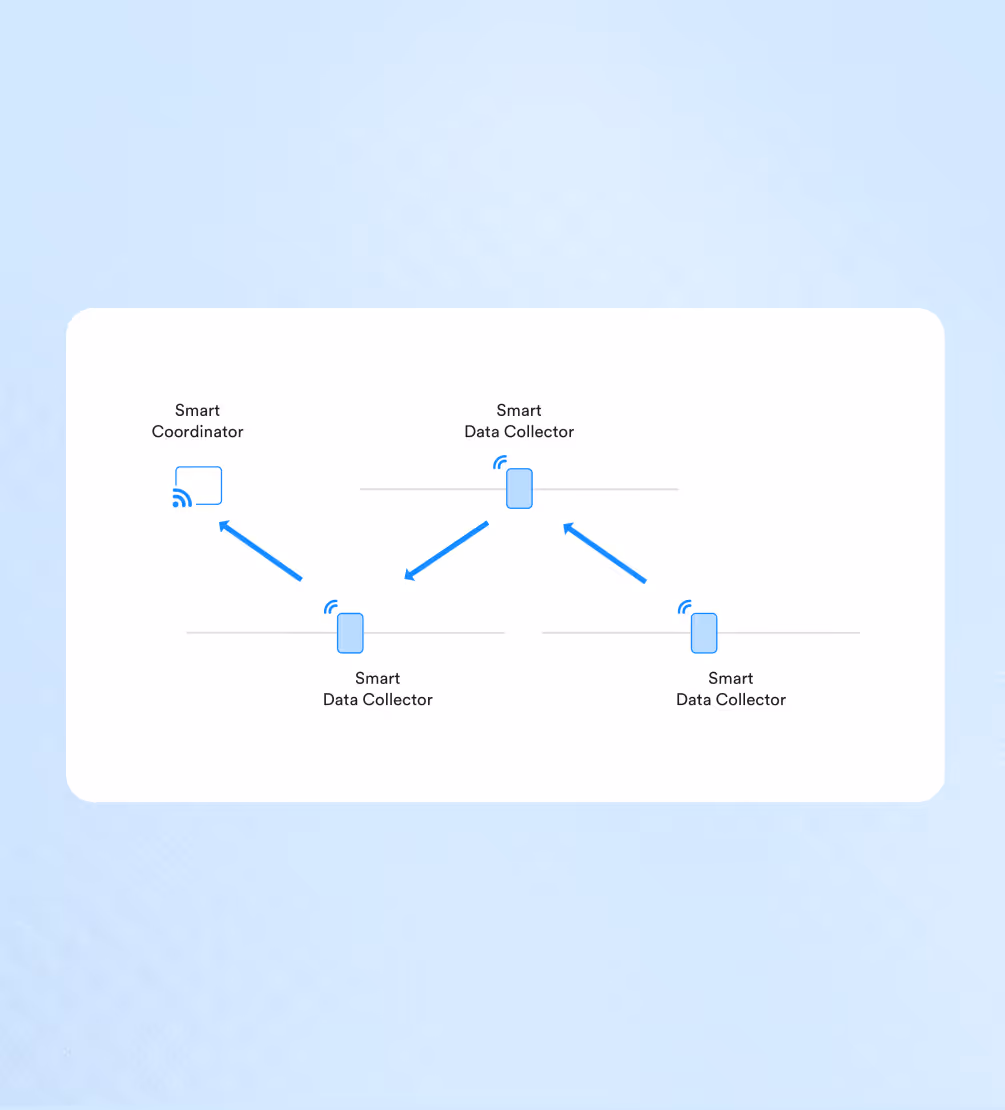

Mesh Network

As multiple Data Collectors are connected to the Coordinator, a mesh network is created and increases the effective range of the Coordinator.

Mesh Network

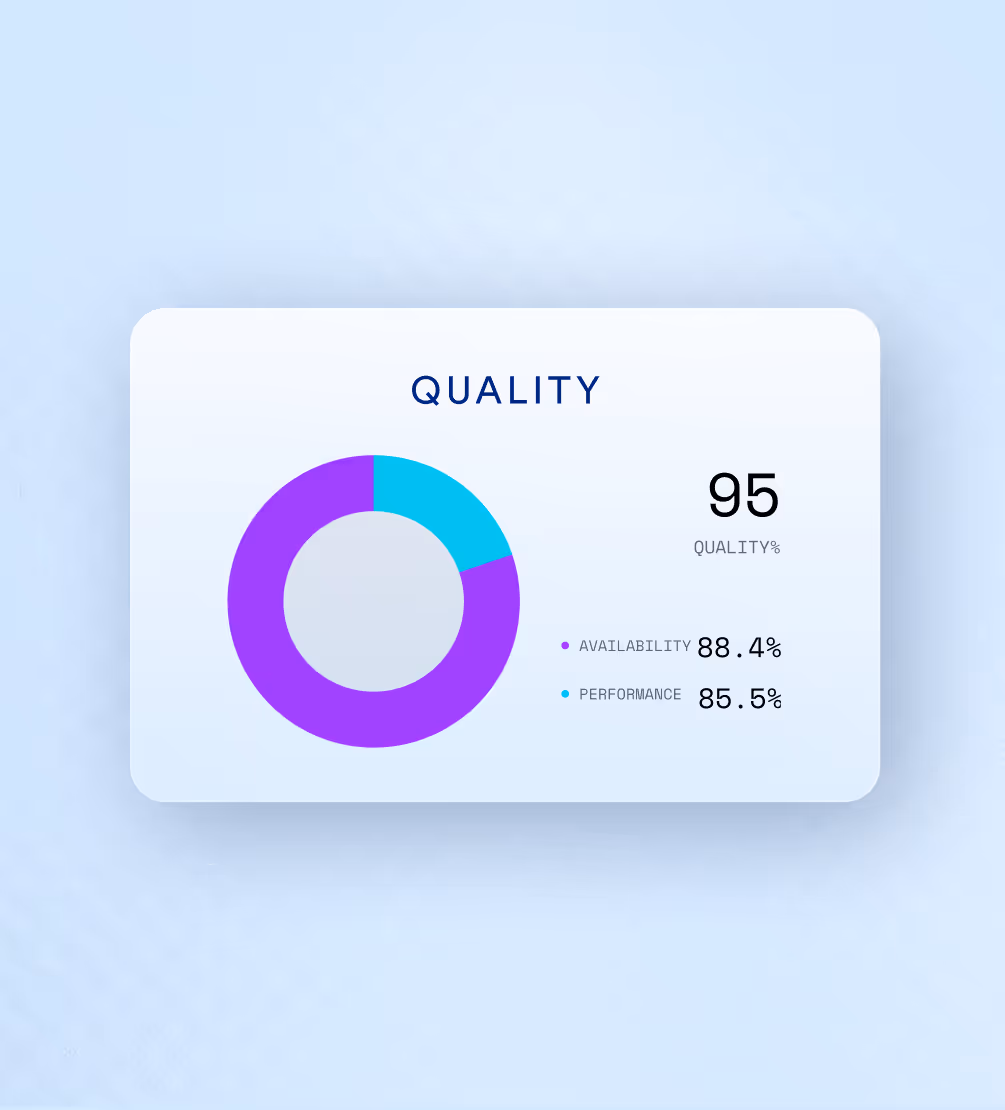

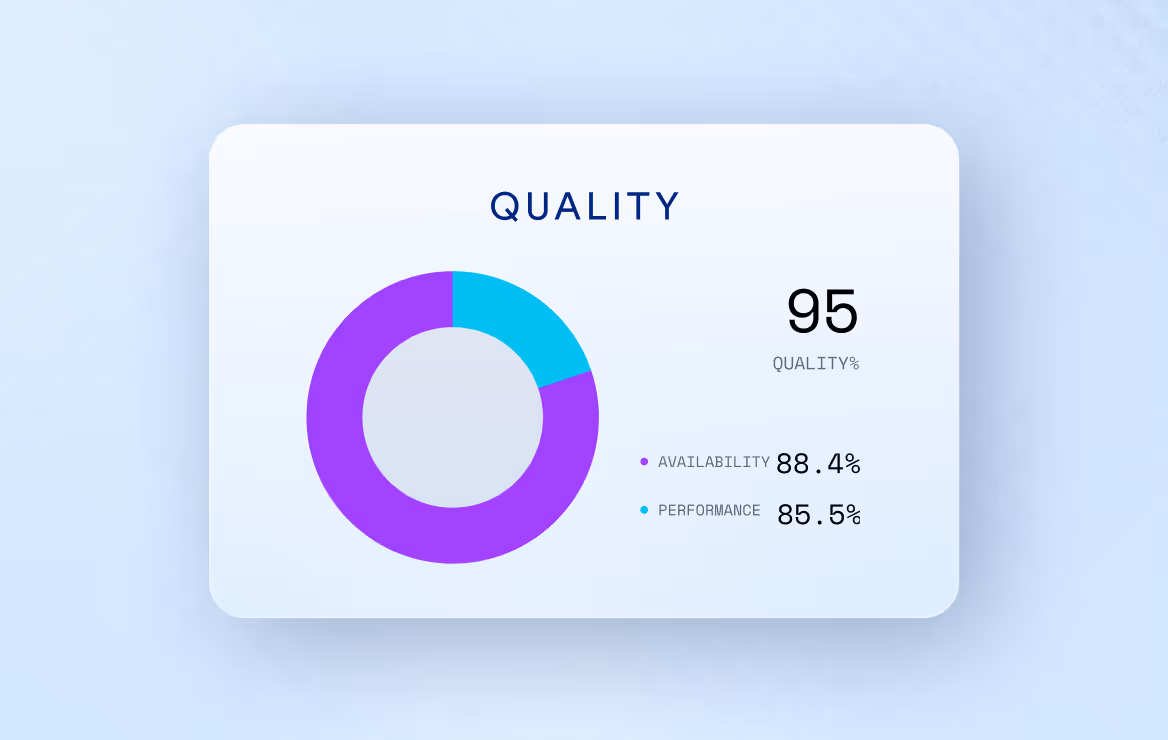

Use TrakSYS to Gain Insights, Optimize Operations

Gain unparalleled insight into your operation, using real-time production data. Then take what you learn and put it into action, using the built-in management features of TrakSYS.
